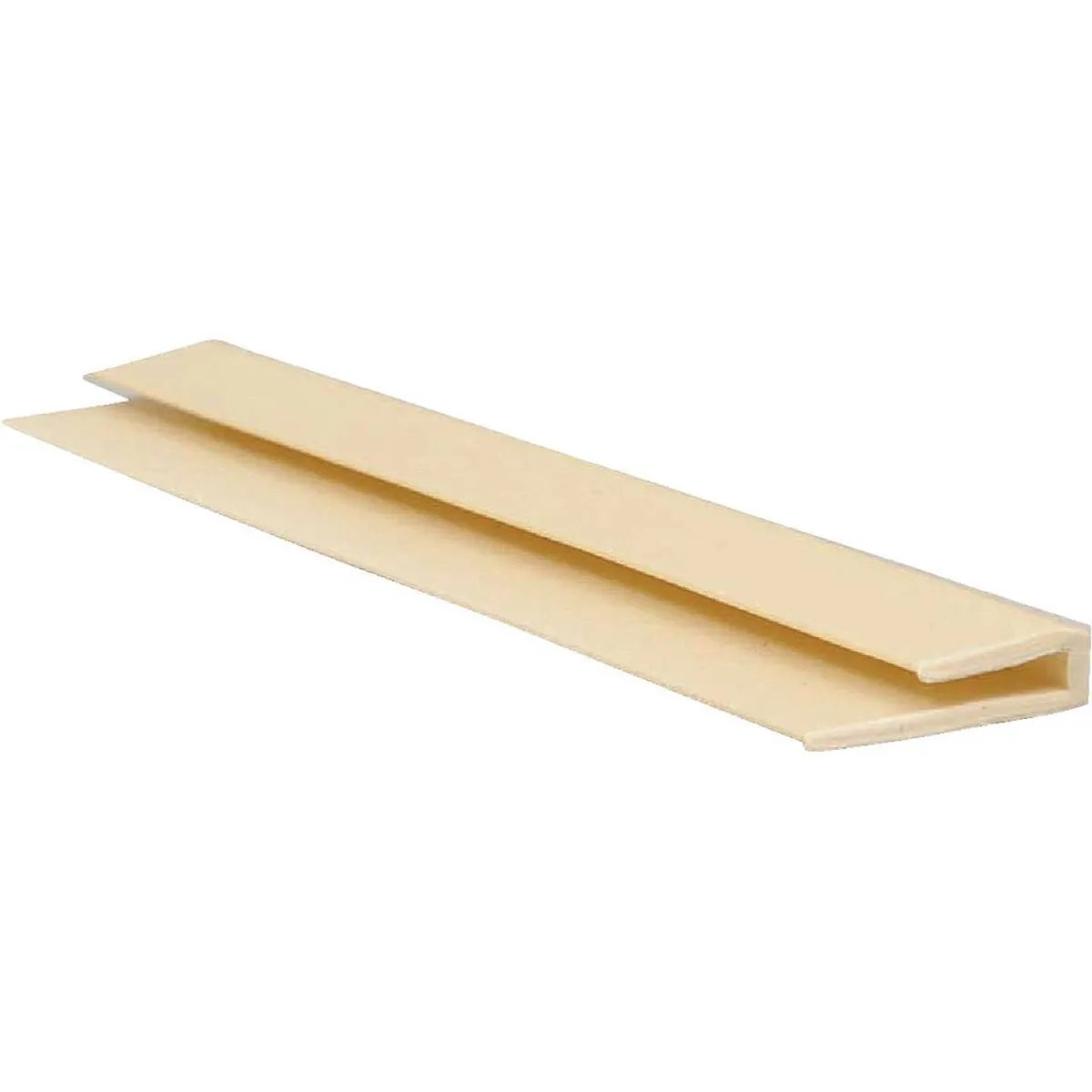

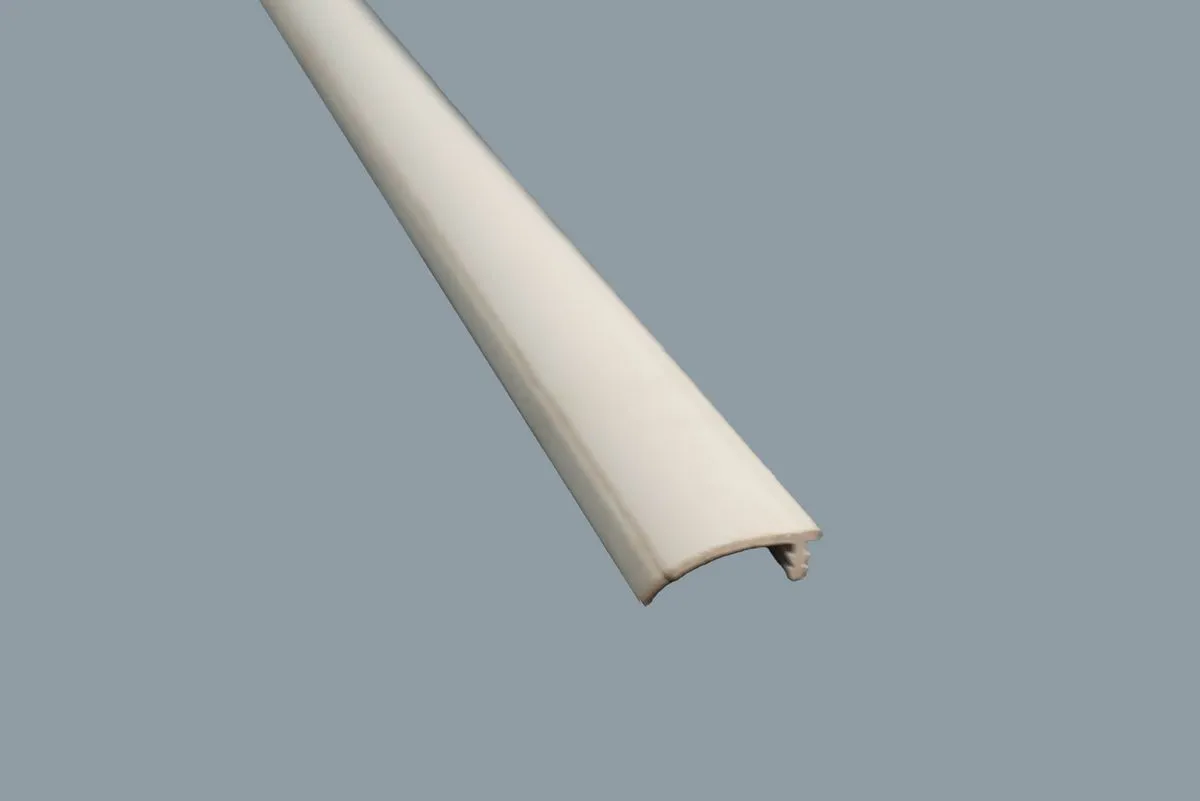

End cap syles
Single Piece, 2 Piece Cap and Base
PVC End Caps
Our range of end caps to suit a range of applications ensuring high levels of hygiene.
Panel Thicknesses
range from 1.3mm to 26mm
Colors
White, Can be custom made to match panels
Material
PVC
Length of single piece
3.62m
Cap Widths
10mm standard, 14mm gasketted
- Gasketted edges with soft material to seal water inflow
- Safe for use up to -20° C
- Hidden Screw System (screws can be used and hidden with profiles)
- Easy to install, our 2 part system means damaged parts are easily replaceable
No downloads available
Greenguard Gold
Most Crane Composites FRP panel has earned GREENGUARD Indoor Air Quality Certification meaning the product has met industry standards for low emissions.
HACCP
HACCP is at the core of our food safety ethos. It is the international standard which was established for preventing hazards that could cause food- borne illnesses by applying science-based controls, from raw material to finished products.
USDA
All Crane Composites FRP panels meet the USDA/FSIS requirements.
ASTM
D3273/D3274 Tests showed that Glasbord with Surfaseal had no fungal growth with a perfect rating of ten for the front and backside of the surface
Cleanroom Suitable Material (CSM)
The level of particle concentration emitted during the testing lies within the permissible value of the corresponding Air Cleanliness Class ISO Class 5 in accordance with ISO 14644-1
FM
FM approval 4880 for Specific Glasbord with Surfaseal products
Qatar Civil Defence
Qatar Civil Defence certificates for our Class A and Class FM Surfaces
Dubai Civil Defence
UL Class A fire Rating for flame spread and smoke development – Report Reference: R4079-19990826 - UL 723 - Test for Surface Burning Characteristics of Building Materials
UL-94
The Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances testing.
No additional information available for this product
