FRP Surface Thickness
1.3-2.3mm

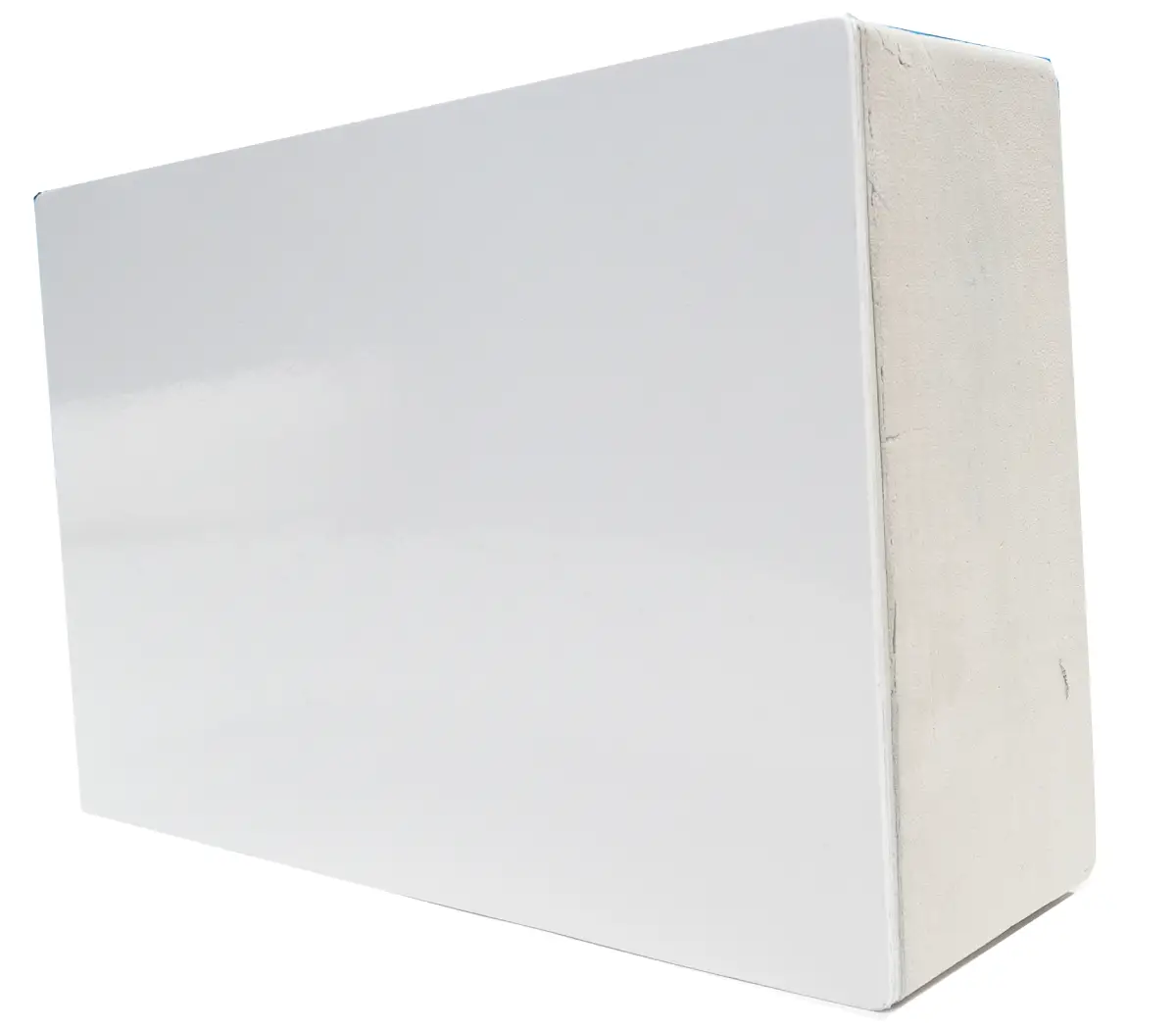

Hygispan® - Quadcore® Sandwich Panels
Hygispan® QuadCore® sandwich panels are far superior to standard PIR panels as they exhibit:
Superior Thermal Resistance
Higher levels of Dimensional Stability
Reduced flame spread and smoke development.
Panel Thickness
50mm, 100mm, 150mm, 200mm
Surface Finishes
Smooth and Embossed
Surface Colors
Soft Beige, Colonial White, Silver, Ivory, Pearl, Gray. Color Match is available upon request
Fire Rating for FRP Surface (ASTM E-84)
Class C, Class A and FM Approved
Available widths
1.1mm
Aged Lambda
0.018 W/m.K
Length
Panels are made to request
Benefits of Hygispan
Hygienic PIR Sandwich panels allow for the highest levels of hygiene on surfaces while providing the benefits and fast assembly of sandwich panels.
- Superior thermal insulation, while providing a high level of hygiene
- Superior sound insulation
- High levels of Fire resistance when using specified engineered options
- Chemical resistance thanks to Glasbord® with Surfaseal®
- Resistant to high pressure cleaning
- Available in single sided or double sided Glasbord® with Surfaseal®, so is suitable for partition walls
- Full range of profiles and accessories are available for a complete system installation
What is QuadCore®?
QuadCore® is Kingspan’s hybrid insulation core technology with a unique formulation that creates microcells with unrivaled thermal performance, superior fire protection, and unmatched health & wellness certification.
Why Quadcore®?
- Class Leading R value of R value of R-8.0 per inch means Quadcore® is certified as one of the most thermally efficient closed cell insulation core on the market
- Up to 60% better thermal resistance
- The higher thermal resistance means you can use thinner Quadcore® panels compared to PIR
- The better thermal efficiency reduces the load on cooling creating significant energy savings
- Quadcore® is low VOC Certified
- Quadcore® has a fireload energy release of almost 15% less than that of standard PIR when comparing insulation thicknesses to achieve matching U values.
- Class leading aged lambda value of 0.018 W/m.K
- Reduction in emissions associated with its use and during its construction makes it a more environmentally sustainable option
Greenguard Gold
Most Crane Composites FRP panel has earned GREENGUARD Indoor Air Quality Certification meaning the product has met industry standards for low emissions.
HACCP
HACCP is at the core of our food safety ethos. It is the international standard which was established for preventing hazards that could cause food- borne illnesses by applying science-based controls, from raw material to finished products.
USDA
All Crane Composites FRP panels meet the USDA/FSIS requirements.
ASTM
D3273/D3274 Tests showed that Glasbord with Surfaseal had no fungal growth with a perfect rating of ten for the front and backside of the surface
Cleanroom Suitable Material (CSM)
The level of particle concentration emitted during the testing lies within the permissible value of the corresponding Air Cleanliness Class ISO Class 5 in accordance with ISO 14644-1
FM
FM approval 4880 for Specific Glasbord with Surfaseal products
Qatar Civil Defence
Qatar Civil Defence certificates for our Class A and Class FM Surfaces
Dubai Civil Defence
UL Class A fire Rating for flame spread and smoke development – Report Reference: R4079-19990826 - UL 723 - Test for Surface Burning Characteristics of Building Materials
UL-94
The Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances testing.
